Timeless Natural Stone Charm.
Pre-Cast for Precision.
Permacrete StoneCast is a precast concrete stone fence wall system developed to replicate the depth, variation, and character of natural stone within a controlled manufacturing environment. Each panel and column is produced using precision molds, standardized mix designs, and monitored curing processes to ensure consistent geometry, surface definition, and structural reliability.
Unlike field-laid stone, where appearance and performance can vary based on material selection and installation conditions, StoneCast panels are formed under repeatable production controls. This approach ensures uniform texture replication, consistent color integration, and predictable alignment across the full wall system.
The result is a precast stone fence wall that delivers the visual richness of natural stone with the performance, consistency, and reliability of engineered precast concrete.
The Permacrete StoneCast Wall System
Specification-Driven Components Manufactured with Quality Controlled Processes
Permacrete StoneCast is designed as a complete precast concrete stone wall system, with each component manufactured to work together as a unified assembly. Panels, columns, and connection elements are produced with coordinated dimensions to maintain alignment, accommodate layout transitions, and support structural continuity across the installation.
This system-based approach allows StoneCast to adapt to changes in elevation, direction, and site geometry while maintaining consistent appearance and performance. By moving construction into a controlled production environment, the system reduces field variability and improves overall installation predictability.
Manufacturing & Quality Control
Every StoneCast precast concrete stone fence wall component is produced using controlled processes that prioritize repeatability, verification, and compliance.
Standards-based production
Manufacturing aligns with Precast/Prestressed Concrete Institute (PCI) and National Precast Concrete Association (NPCA) guidelines, with materials tested to ASTM specifications for consistent, specification-ready performance
Precision mold replication
High-definition molds capture detailed stone textures with repeatable accuracy across all panels
Reinforcement verification
Steel placement is inspected prior to casting to ensure structural consistency and performance under load
Tolerance-controlled production
Formwork and casting processes maintain tight dimensional tolerances for proper fit and alignment
Controlled curing conditions
Managed curing supports consistent strength development and surface quality
Pre-shipment inspection
Each unit is reviewed for dimensional accuracy and finish consistency before delivery
Production traceability
Batch tracking and documentation provide accountability throughout the manufacturing process
Consistency at scale
These controls ensure uniform results across large production runs and extended wall systems
System Components
The Permacrete StoneCast system consists of precast concrete stone wall panels and structural columns designed to function as a cohesive unit.
Together, these elements create a stable, repeatable wall assembly capable of maintaining continuity across straight runs, corners, and grade transitions.
Architectural Finishes
StoneCast Profiles with Controlled Texture & Color Variation
Permacrete StoneCast combines the visual complexity of natural stone with the reliability of controlled precast manufacturing. Available in a wide range of profiles designed to replicate distinct stone styles while maintaining strict manufacturing control, each option is produced using precision molds and standardized processes. This ensures consistency in texture replication, depth, color integration, and overall appearance.

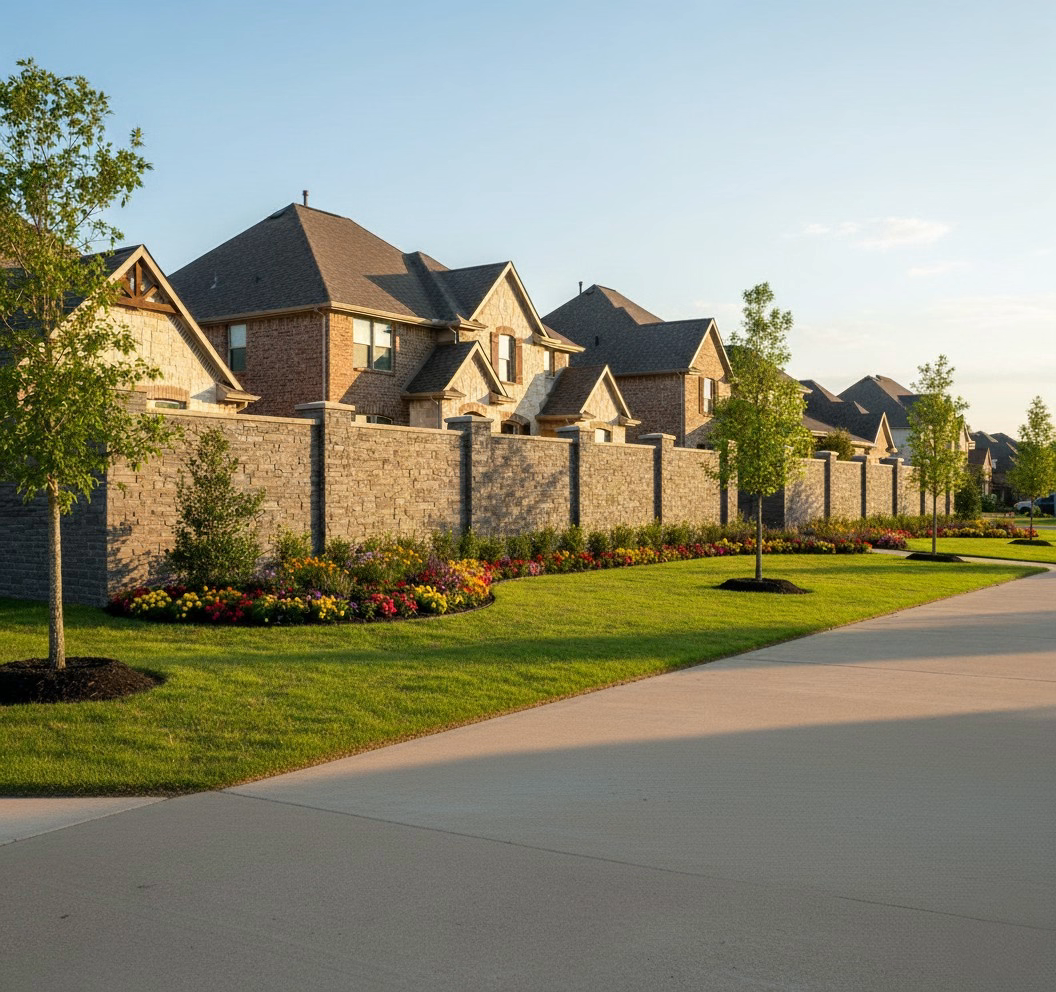

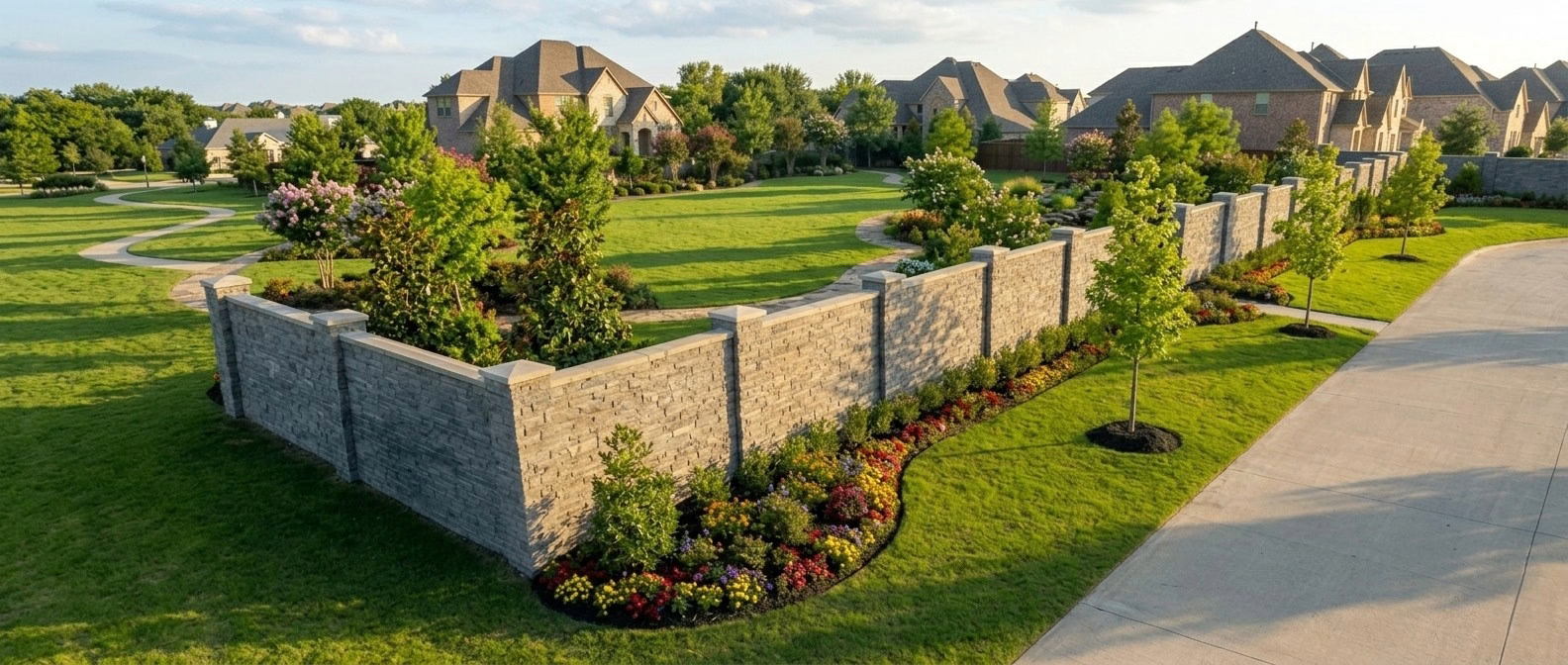

Ledgestone StoneCast
A horizontally layered pattern that reflects the look of stratified natural stone, offering strong linear definition and depth.

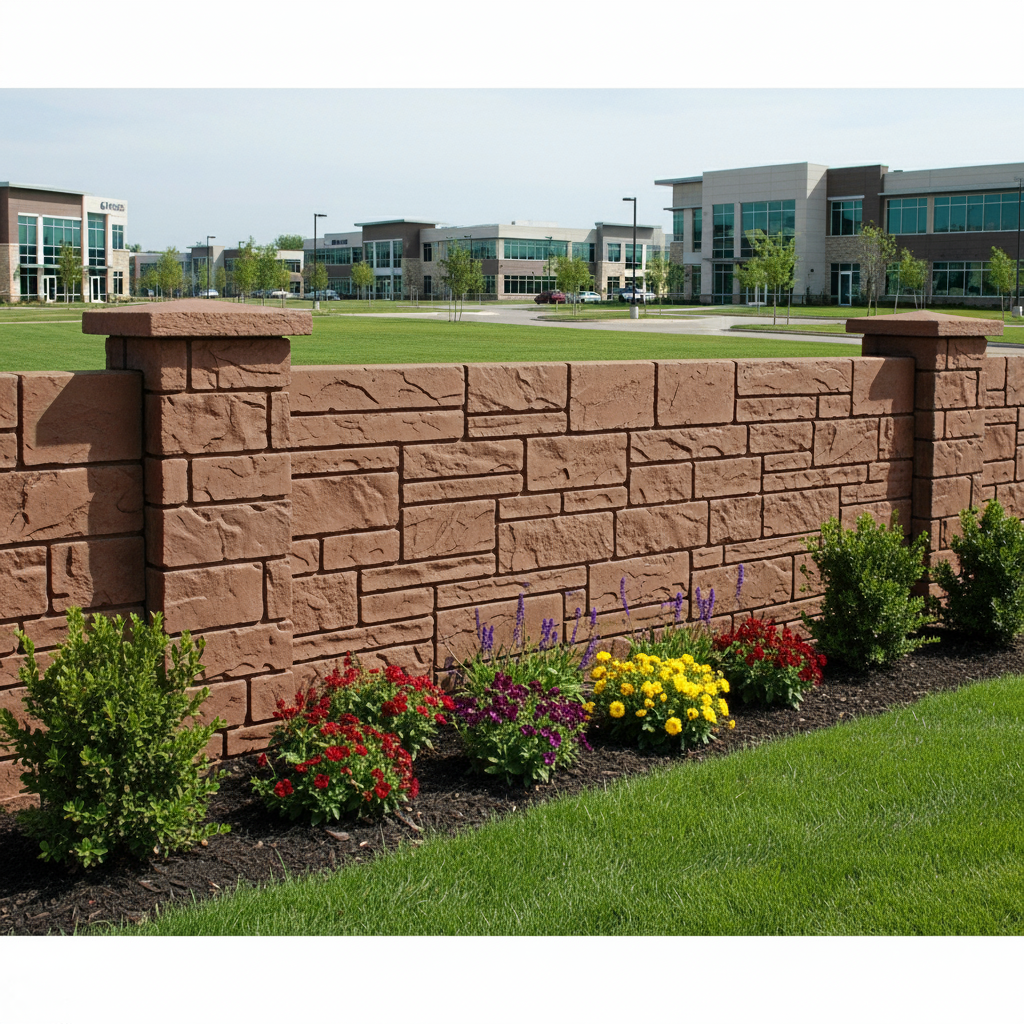

Ashlar StoneCast
A structured, cut-stone appearance with balanced rectangular forms and consistent coursing for a refined architectural look.

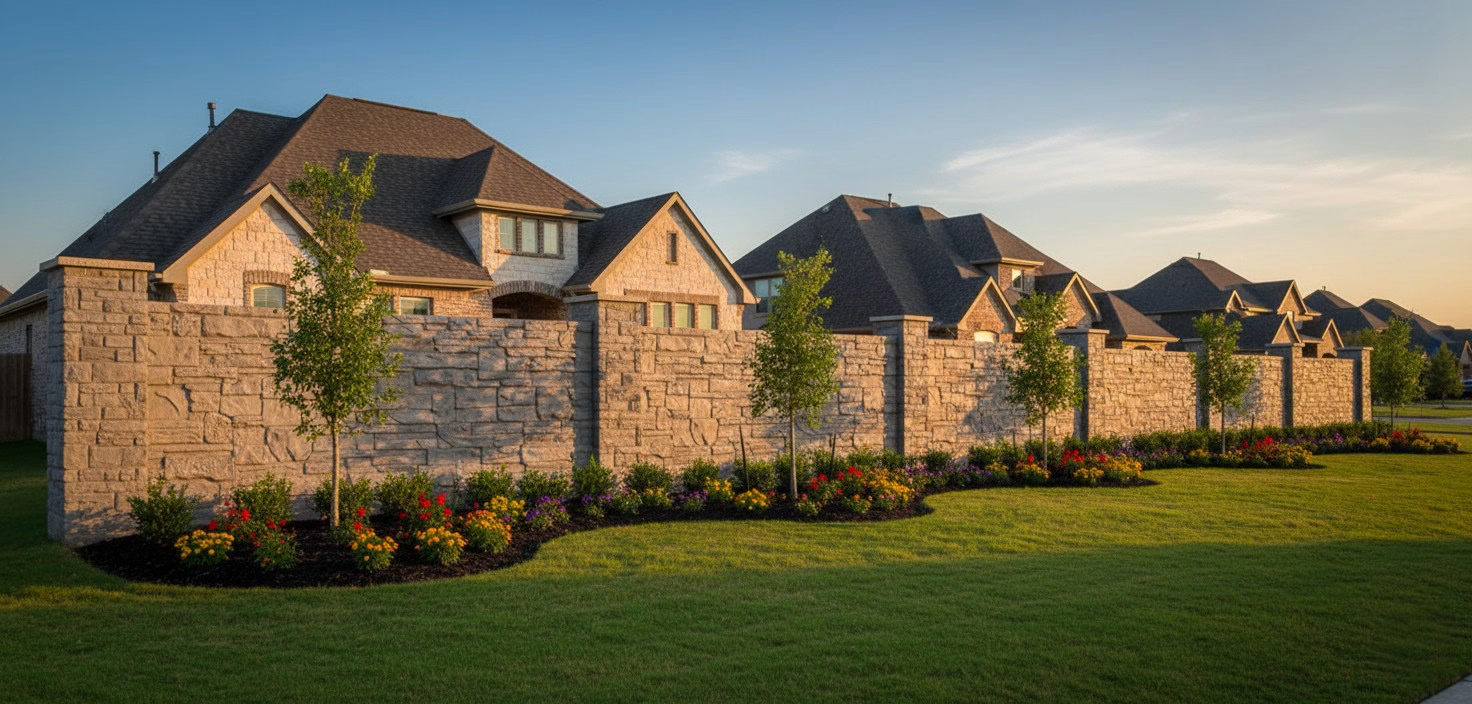

Ashlar Dry StoneCast
A dry-stack profile that minimizes visible joint lines while maintaining the dimensional consistency of precast production.

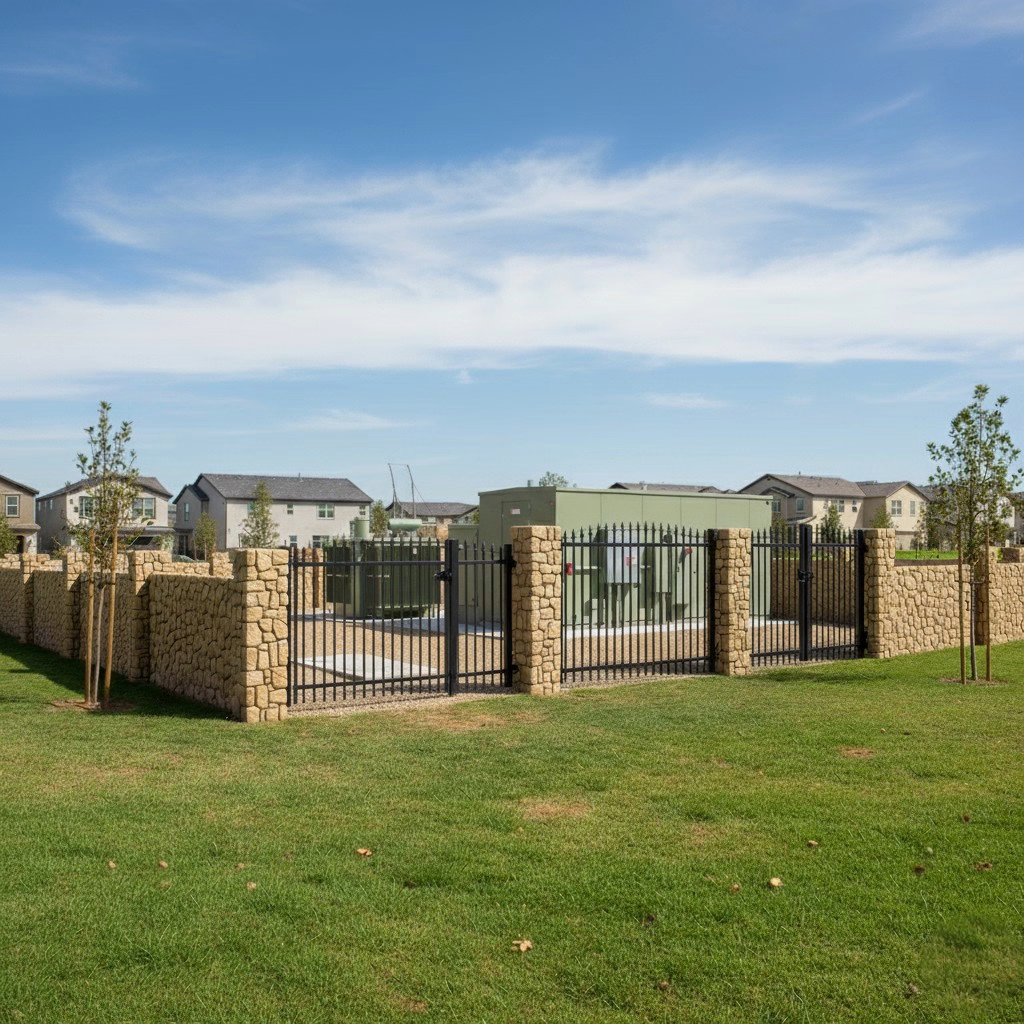

Kona Rock StoneCast
A bold, highly textured surface inspired by volcanic stone, introducing variation and visual impact within a controlled system.

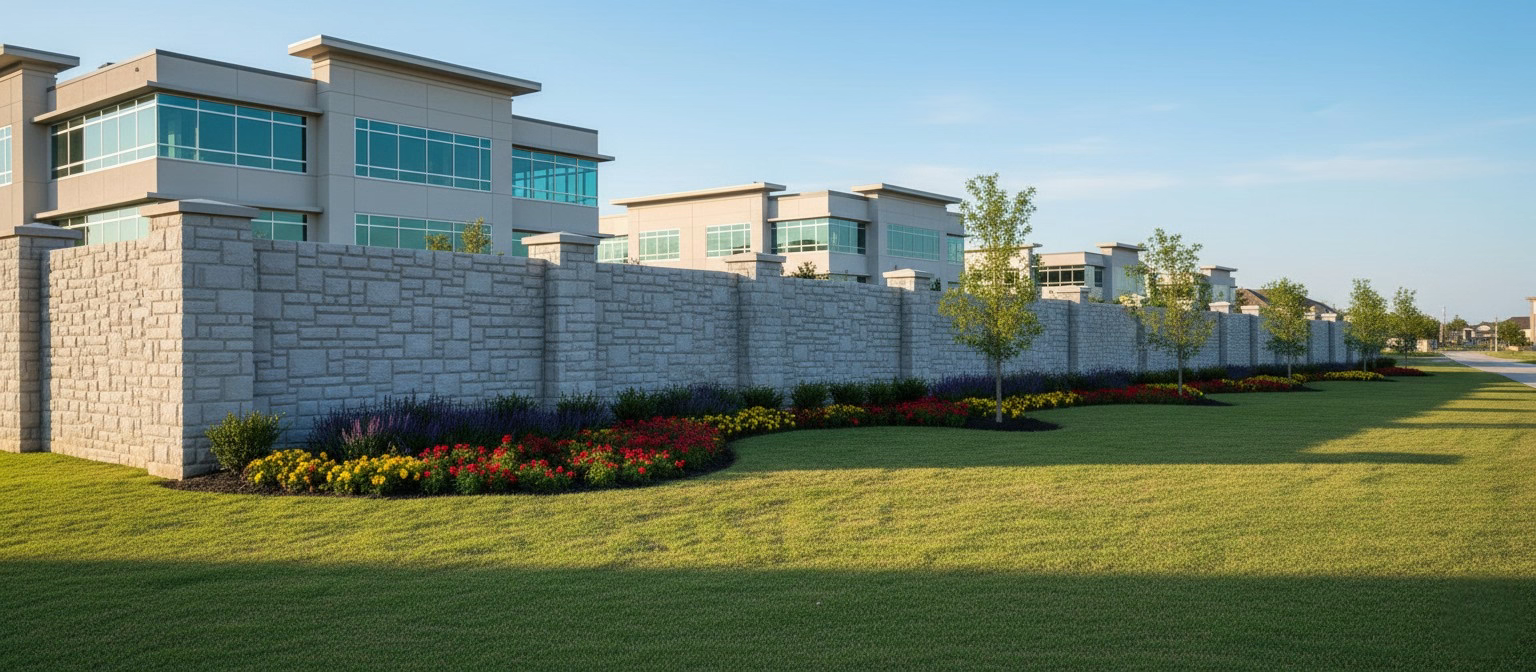

Tallahassee Ashlar StoneCast
A regionally influenced profile reflecting limestone aesthetics, produced with consistent geometry and repeatable surface detail.

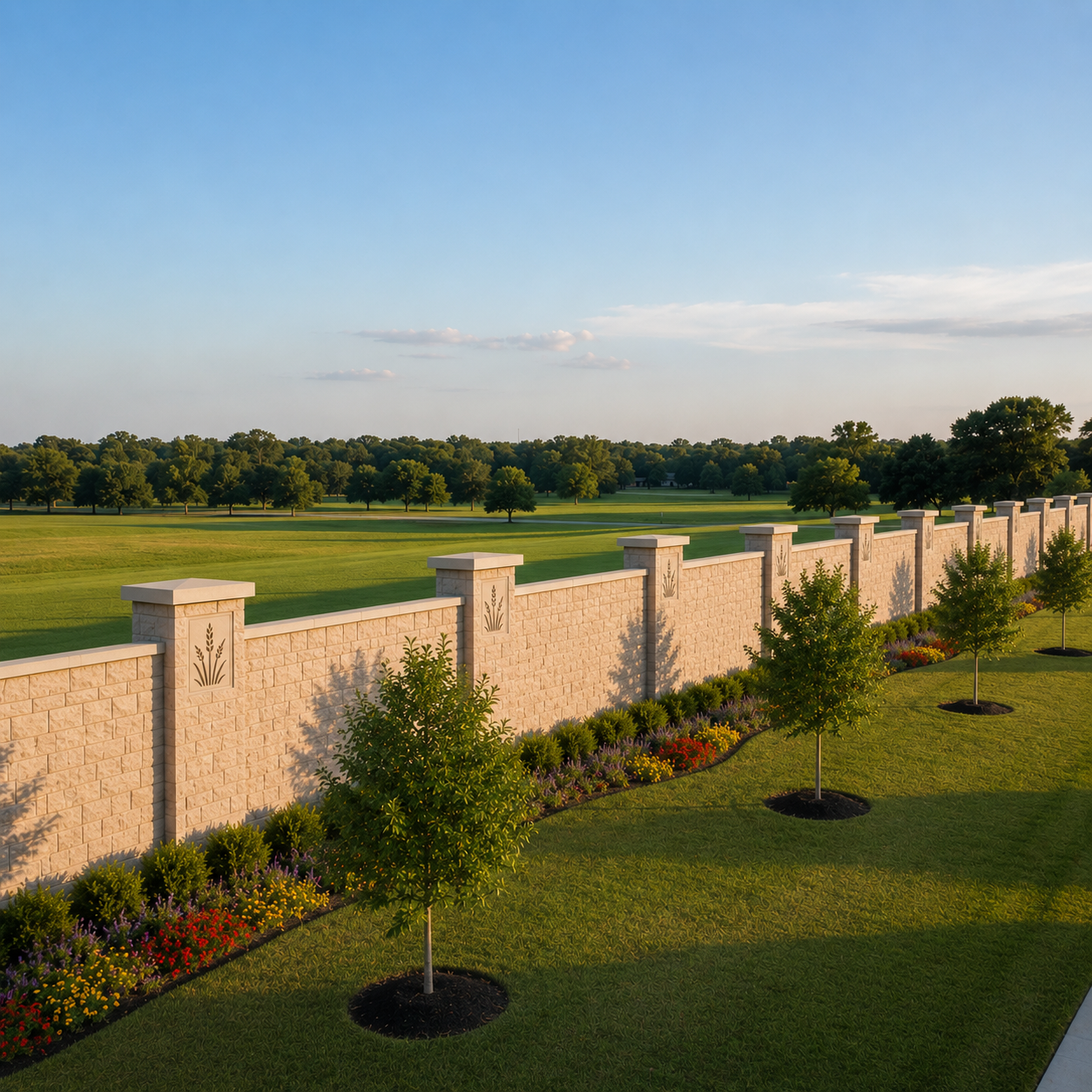

Custom StoneCast Patterns
Custom configurations can be developed to match specific stone types or architectural requirements while maintaining full manufacturing control and system performance.
The Permacrete StoneCast Advantage
Efficient Installation.
Impressive Field Outcomes.

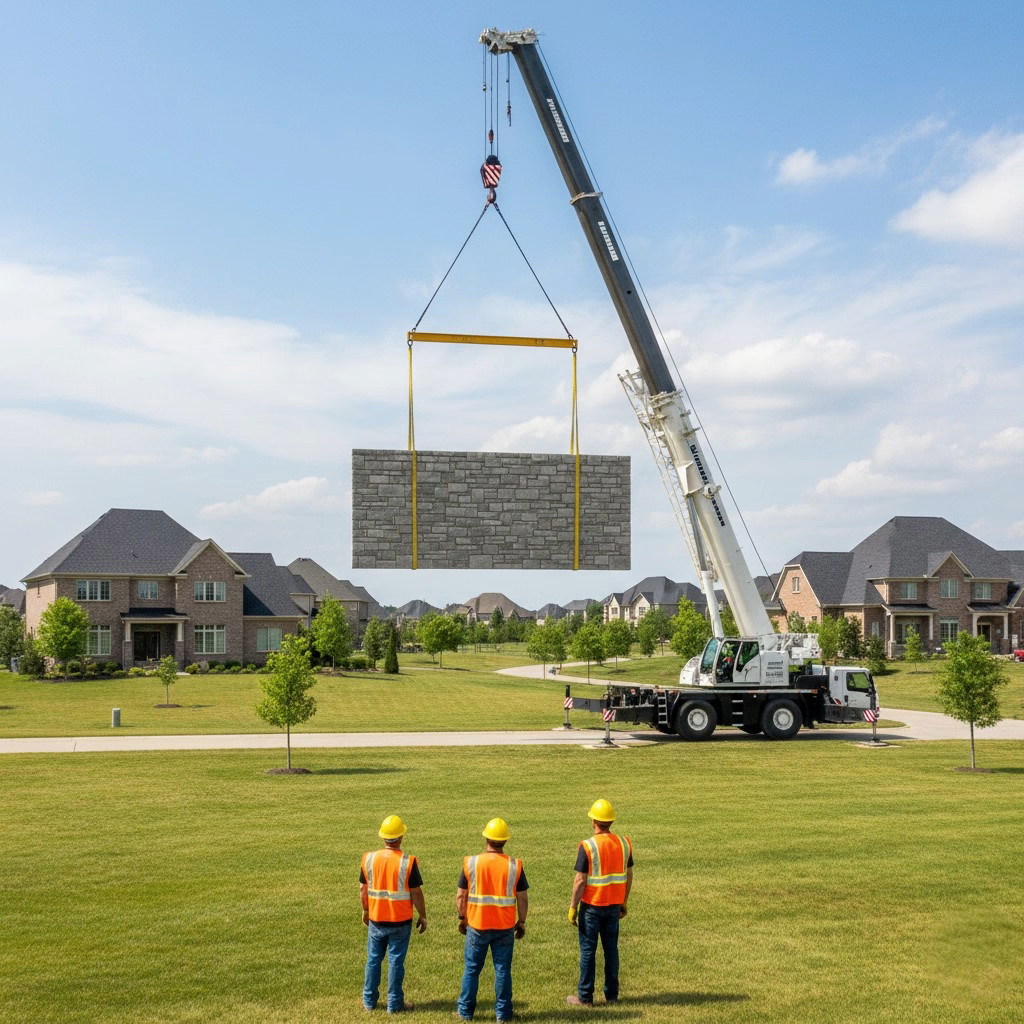

Permacrete StoneCast installation follows a streamlined process designed to improve efficiency and maintain alignment. Columns are set on engineered foundations designed for site-specific loading conditions, after which panels are placed into position to form a continuous wall system.
Because each component is manufactured to consistent dimensions, installation adjustments are minimized and sequencing remains predictable. Alignment, joint continuity, and elevation control are easier to maintain compared to traditional stone construction, where variability can impact both appearance and performance.
This approach supports faster construction timelines and consistent field results, particularly on large-scale projects such as residential community perimeter walls, public utility walls and security walls, where uniformity and visual appeal are critical. Moreover, the StoneCast system is especially well-suited for hot, humid, and storm-prone climates, where traditional masonry systems can be more susceptible to deterioration.
Resources
Access technical and design support materials to assist with planning and specification of your precast concrete stone fence wall system:
Frequently Asked Questions
Interested in Precast for Your Next Project?
If your project requires a precast fencing wall solution that combines architectural detail with controlled production, Permacrete StoneCast is built to deliver.
Complete the form below to start the conversation.
